Integrating with Kodak Capture Pro

This section describes the process of installing the integration between FileHold and Kodak Capture Pro. This article requires you to have proficiency with scanning and working knowledge of Kodak Capture Pro.

Install Kodak Capture Pro 2.5 or up to version 4.0 is supported. Version 4.1 is not supported, it was released recently.

  1. Download and save the Kodak Capture Pro integration files

  2. Once downloaded, unzip the files completely. The integration files contain some screenshots, and the BOF_FH2.dpl file. This is the file that adds the FileHold Application to Kodak as an export type.

  3. Make sure Kodak Capture Pro is not running, it must be completely closed out and exited before proceeding.

  4. Navigate to your Kodak Capture Pro program folder and find the Plugins folder

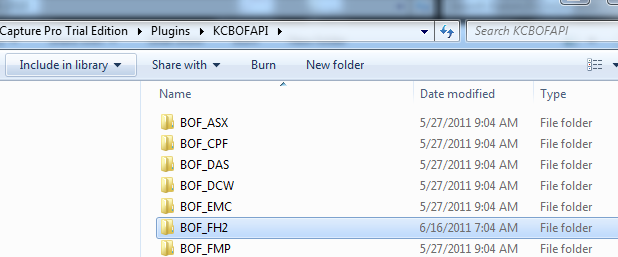

  5. Create a folder called BOF_FH2 under the Plugins\KCBOFAPI folder



















  1. Place the supplied BOF_FH2.dpl file in this folder
  2. Launch Kodak Capture Pro
  3. Open up the Job Setup folder - in Kodak Capture Pro

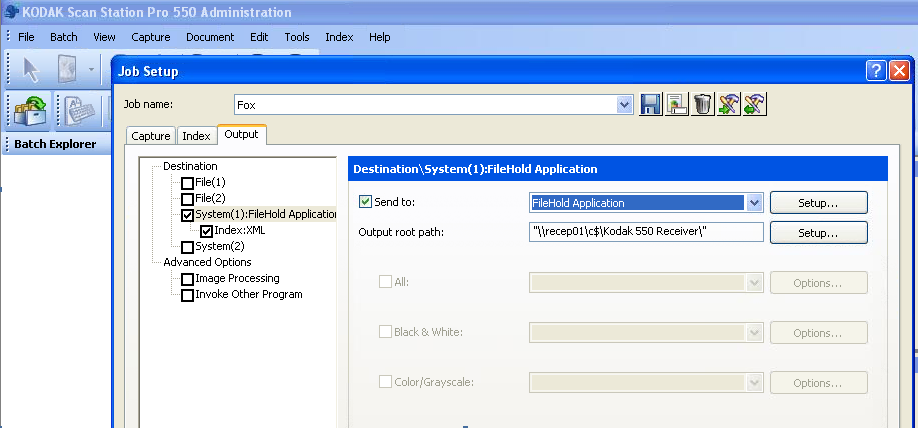

  4. Under the output tab of Job Setup you will see a Destination list, select System 1 - and then on right hand side, select Send to: FileHold Application.

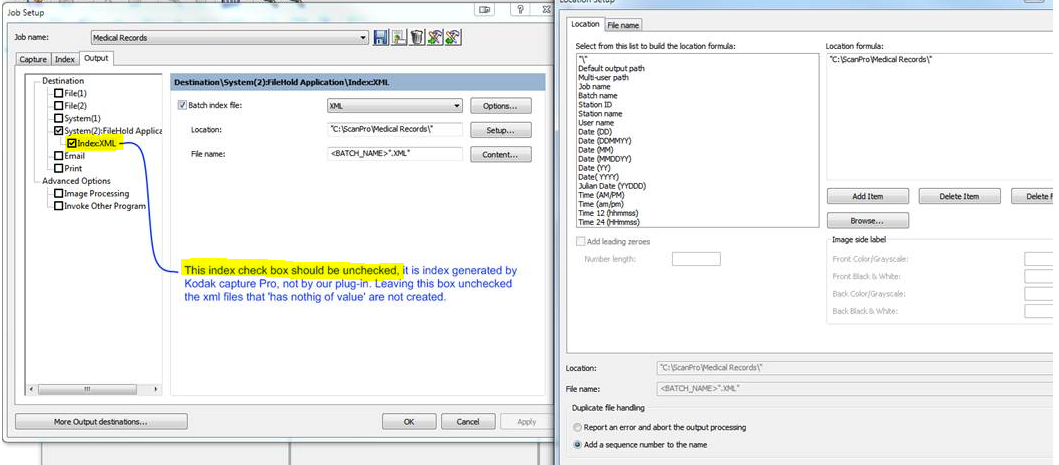

  5. You should not select the Index.XML file underneath the System: FileHold Application menu like the below screenshot shows. We do this to make sure that you do not select this. This is an extra XML file that is not needed, since the FileHold application .dpl file creates this automatically.






















Here is another example of a setup.
















Now that this is setup, you should assign the path for the XML file to be saved to, and we recommend that you place this where your OCR'd PDF's will go.

The XML file will contain the index metadata captured at scan time by Kodak Capture Pro and the path for each PDF. This XML file is then processed using the FileHold Desktop Client Manage Imports utility.

Installing the Barcode Font

If you plan on using cover sheets with barcodes to separate your documents during scanning, you will need to create them using a barcode font. As the scanner reads a barcode, it will separate the batch into separate documents. You can install the 3 of 9 barcode font and use it to create cover sheets for your scanned documents.

To install the barcode font ( Optional )

  1. Download the font from http://download-filehold.com/DEMO/QuickScan-Pro/3of9.zip.

  2. Unzip the file and install the font to your Fonts folder. Check your operating system's documentation for more information on how to install a font.
